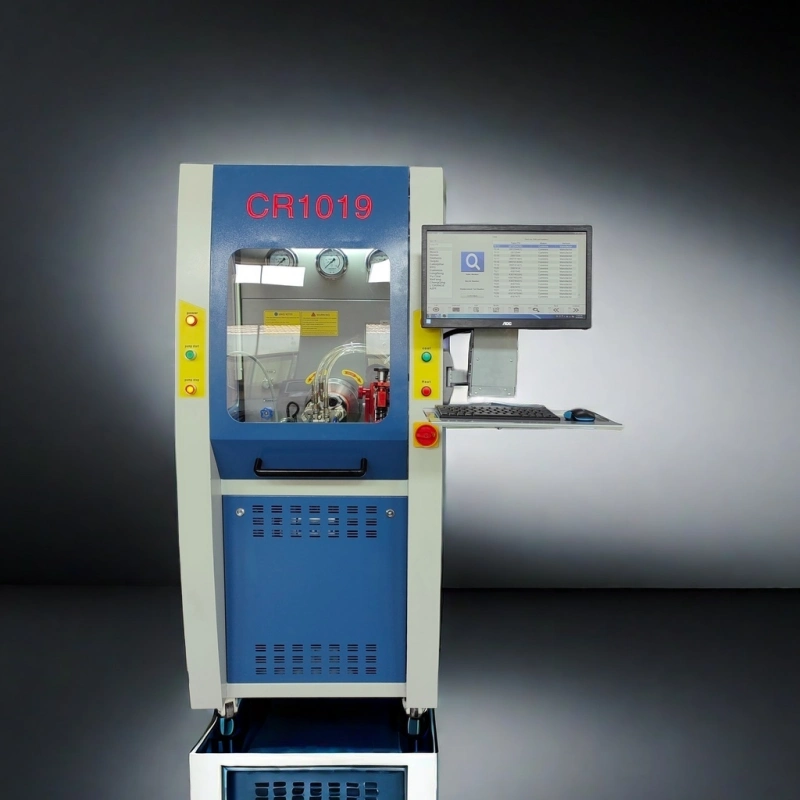

CR1019
Introduction
CR1019 High voltage common rail electric control system comprehensive test bench: Can test thousands of models of electronically controlled fuel injectors, high-pressure electronically controlled common rail pumps and electronic control units, including BOSCH, DELPHI, Denso, Siemens, Caterpillar, Cummins (Eastcom, Fukang) and other common rail injector, injector compensation code, common rail high pressure pump, HP0 pump, single pump/pump nozzle, HEII injector.
Main function :
- Independent research and development of electronically controlled common rail injector control system (with remote control service, free upgrade, WIFI connection, etc.).
- The HEUi injector test is equipped with a new type of special test and installation fixture.The test process is simple, accurate and reliable.
- The new cam box can conveniently and quickly test electronicallycontrolled unit pumps and pump nozzle injectors, and the test data ismore accurate and reliable.
- Electro-controlled high-pressure common rail pump test, thesuper-high coaxiality between the main motor drive shaft and theelectronically controlled pump makes the test process more stableand lower noise.
- The equipment adopts high-pressure quick connectors,which are convenient for users to test and improve maintenance efficiency.
- Equipped with universal clamps suitable for clamping various typesof electronically controlled common rail injectors, connectingspecial wiring harnesses and special oil supply and return joints,Strong versatility, easy to use, fast clamping.
| Description | Parameter |
|---|---|
| Main motor power: | 7.5kW |
| Supply voltage： | 380V AC/220V AC |
| Fuel temperature control system : | Heaters and forced refrigeration systems (industrial compressors) |
| Fuel oil temperature control | Heater and forced air cooling system |
| Fuel oil temperature control： | 40±2℃ |
| Maximum pressure of high pressure system： | 260 MPa |
| Fuel pressure control range: | 0-2500Bar |
| Injector injection duration: | 100-5000μS |
| Speed range: | 0-4000rpm |
| Drive coupling diameter: | 120mm |
| Flow meter(electric control injector flow test): | 0-4000ml/min |
| Flow meter (HEUl oil volume test): | 1-400L/H |
| Machine size: | 1020mm*800mm*1800mm |
| Oil filtration accuracy: | 3μ |
| Fuel tank volume : | 40L |
| Engine oil tank volume: | 40L |
| Machine weight: | 350KG |
Building Solutions
Building
The Future
Best Diesel Test Machines For Your Diesel Center
Ideally equipped for the challenges of the future
At our test bench assembling factory, we offer a wide range of products including pump test benches, injector test benches, CR test benches, injector spare parts, and injector repair tools.
We take pride in being a test bench assembling factory with 20 years of experience.
If the goods are in stock, anticipate delivery within 5-10 days. For items not currently in stock, the estimated delivery time is 15-20 days, depending on the quantity.
For payments below $1000, we require 100% in advance. For payments above $1000, we ask for a 30% T/T advance payment, with the balance due before shipment.
We provide unrivaled quality at the most competitive prices. With two decades of experience in developing diesel test benches, we have amassed a team of approximately 50 engineers available 24/7 to address your technical inquiries. We also offer lifelong after-sales service for your products and support online communication in multiple languages.
