Multi-Functional Common Rail Test Bench
Professional Team
Proper Equipment
Secure & Safety

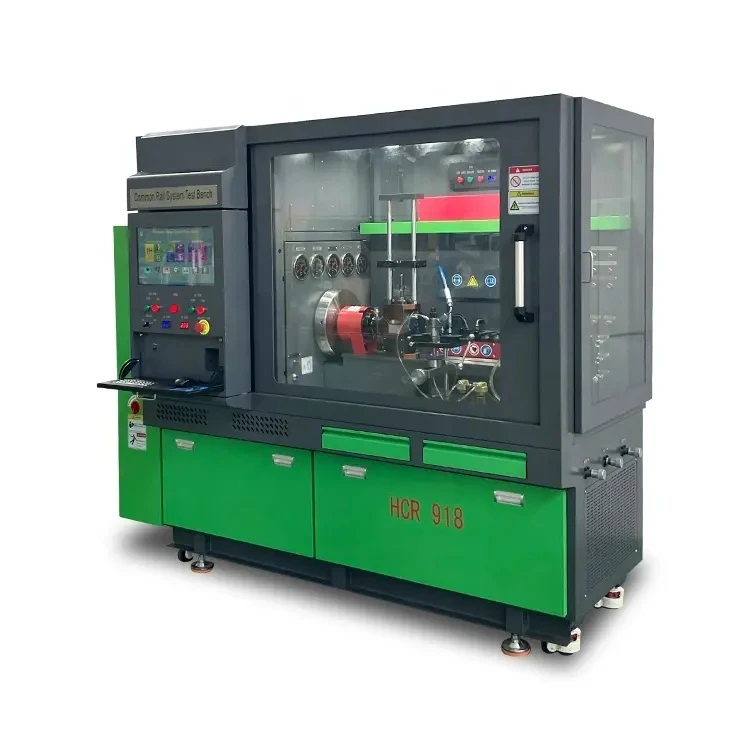

HCR-918
Introduction
HCR918 high voltage common rail electric control comprehensive test bench: Can test thousands of models of electronically controlled fuel injectors, high-pressure electronically controlled common rail pumps and electronic control units, including BOSCH, DELPHI, Denso, Siemens, Caterpillar, Cummins (Eastcom, Fukang) and other common rail injector, injector compensation code, common rail high pressure pump, HP0 pump, single pump/pump nozzle, HEII injector, HEUI oil pump.
Main function :
- HEUI ACTUATION PUMP TEST Test CATERPILLAR HEUI actuation pump, equipped with special installation and test box, make the test more stable and reliable.
- THE NEW CAM BOX The new cam box can conveniently and quickly test electronically controlled unit pumps and pump nozzle injectors, and the test data is more accurate and reliable.
- COMMON RAIL PUMP TEST Electro-controlled high-pressure common rail pump test, the super-high coaxiality between the main motor drive shaft and the electronically controlled pump makes the test process more stable and lower noise.
- UNIVERSAL FIXTURE Equipped with universal clamps suitable for clamping various electronically controlled common rail injectors, connecting special wiring harnesses and special oil supply and return joints. Strong versatility, easy to use, fast clamping.
- HEUI INJECTOR TEST The HEUI injector test is equipped with a new type of special test and installation fixture. The test process is simple, accurate, and reliable.
- 19 INCH LCD MONITOR Independent research and development of electronically controlled common rail injector control system (with remote control service, free upgrade, WIFI connection, etc.)
| Description | Parameter |
|---|---|
| Service voltage: | 380V(220V optional) |
| Main motor power: | 11 kW / 15 kW |
| Solenoid Valve Drive Current: | 0-30 A |
| Volume of fuel tank: | 40L |
| Use Environmental Temperature: | Less than 35°C |
| Noise Level: | <75 dB |
| Maximum Pressure of High Pressure System: | 250 MPa |
| Fuel Pressure Control Range: | 0-2500 Bar |
| Injector Injection Duration: | 100-5000 μs |
| Speed range: | 0-4000rpm |
| Range of control temperature: | 40±2°C |
| Flowmeter(HEUI oil volume test): | 1-400L/H |
| Machine size: | 2440x1360x2200mm |
| Machine weight: | 1200KG |
Building Solutions
Building
The Future
Best Diesel Test Machines For Your Diesel Center
Ideally equipped for the challenges of the future
At our test bench assembling factory, we offer a wide range of products including pump test benches, injector test benches, CR test benches, injector spare parts, and injector repair tools.
We take pride in being a test bench assembling factory with 20 years of experience.
If the goods are in stock, anticipate delivery within 5-10 days. For items not currently in stock, the estimated delivery time is 15-20 days, depending on the quantity.
For payments below $1000, we require 100% in advance. For payments above $1000, we ask for a 30% T/T advance payment, with the balance due before shipment.
We provide unrivaled quality at the most competitive prices. With two decades of experience in developing diesel test benches, we have amassed a team of approximately 50 engineers available 24/7 to address your technical inquiries. We also offer lifelong after-sales service for your products and support online communication in multiple languages.
